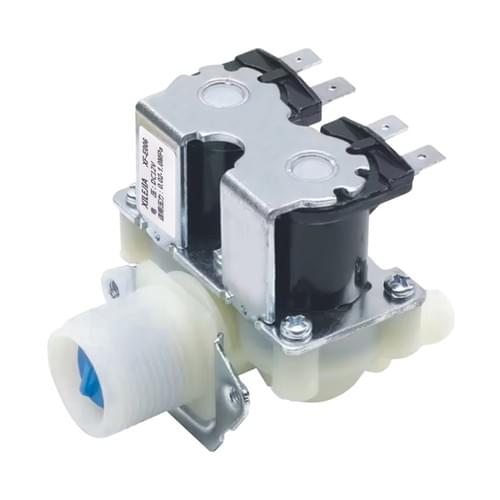

XF-E006
额定电压 Rated voltage:DC12V
适应压力 Applicable pressure: 0.02-1.0MPa
工作寿命 Working life: 10万次以上≥100,000 times
安装间距 Mounting spacing: 45mm 2×M4
进水口规格Inlet specifications: G3/4
出水口规格Outlet specifications:2×Φ12mm
水压Water pressure(Mpa) 0.02 0.1 0.3-0.8
流量特性(L/min) v1 >3 >5-12 >8-14
Flow characteristics v2 >3 >5-12 >8-14
客户有特殊要求可另行设计
Designed according to special requirements
适应压力 Applicable pressure: 0.02-1.0MPa
工作寿命 Working life: 10万次以上≥100,000 times
安装间距 Mounting spacing: 45mm 2×M4
进水口规格Inlet specifications: G3/4
出水口规格Outlet specifications:2×Φ12mm
水压Water pressure(Mpa) 0.02 0.1 0.3-0.8
流量特性(L/min) v1 >3 >5-12 >8-14
Flow characteristics v2 >3 >5-12 >8-14
客户有特殊要求可另行设计
Designed according to special requirements
