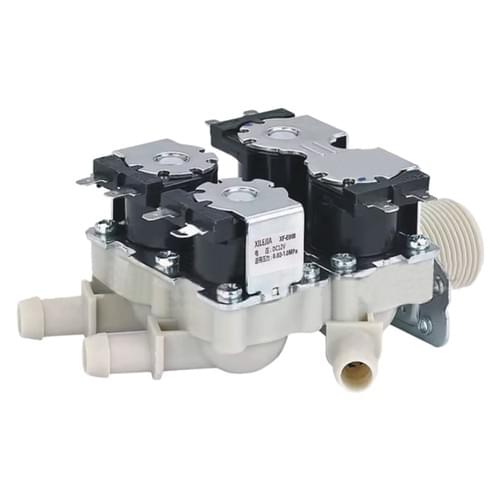

Water valve/washing machine water valve/washing machine solenoid valve
Rated voltage:DC12V
Applicable pressure: 0.02-1.0MPa
Working life: ≥100,000 times
Mounting spacing: 45mm 2×M4
Inlet specifications: G3/4
Outlet specifications:4×Φ12mm
Water pressure(Mpa): 0.03/ 0.1/ 0.3-1.0
Flow characteristics(L/min) : v1 0.3-2/ 1-5/ 1-5
Flow characteristics(L/min) v2/v4 3-8 / 7-11/ 9-13
Flow characteristics(L/min) :v3 0.2-0.7/ 0.3-0.7/ 0.3-0.7
Designed according to special requirements
